The Galileo Energetic Particles Detector
Galileo EPD Handbook
Chapter 1. Instrument Summary
Additional CMS TOF Calibration Information
Source: H. Sommer, EPD Science Team Meeting, March 1998
 |
Figure A. |
 |
Figure B. |
Galileo CMS TOF, O+++, 900 keV
Notes:
901.5 m/q=5.5; 0 Grad, dia=2mm, thr. 100 keV
SSD~11 deg wide; FSR ≤9 deg wide
 |

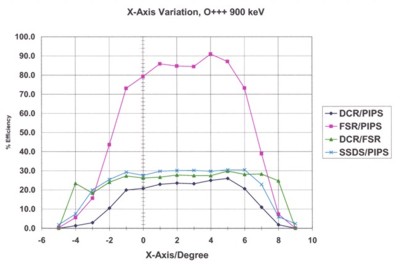

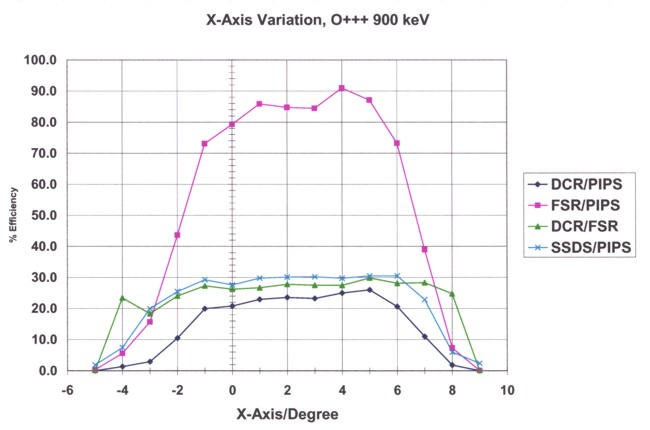

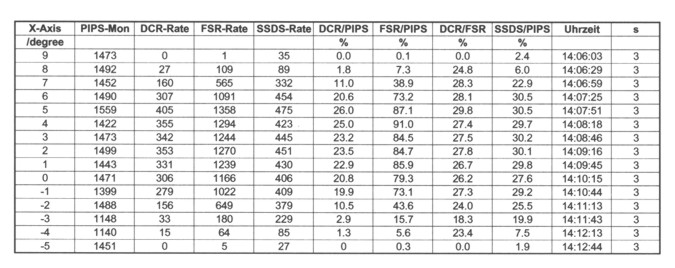

Figure C. |
Next: Bench Calibrations of True vs. Apparent Rates of the CMS System
