Chapter 1. Instrument Summary



CMS Analog Electronics (Post-Challenger Information)



Source: The Galileo Energetic Particles Detector, D. J. Williams et al., Space Science Reviews, 60, 385, 1992 (excerpts)



Figure 1-16 shows a block diagram of the CMS analog electronics. The velocity measurement is made via the Time-to-Amplitude Conversion (TAC) electronics, which measure ion velocity by converting microchannel plate-produced start and stop charge pulses into a bipolar linear signal whose amplitude is proportional to the time-of-flight of the ions over a known distance. The analog signal shaping times are similar to those used on the other CMS channels.



Figure 1-16. CMS analog signal processing block diagram.

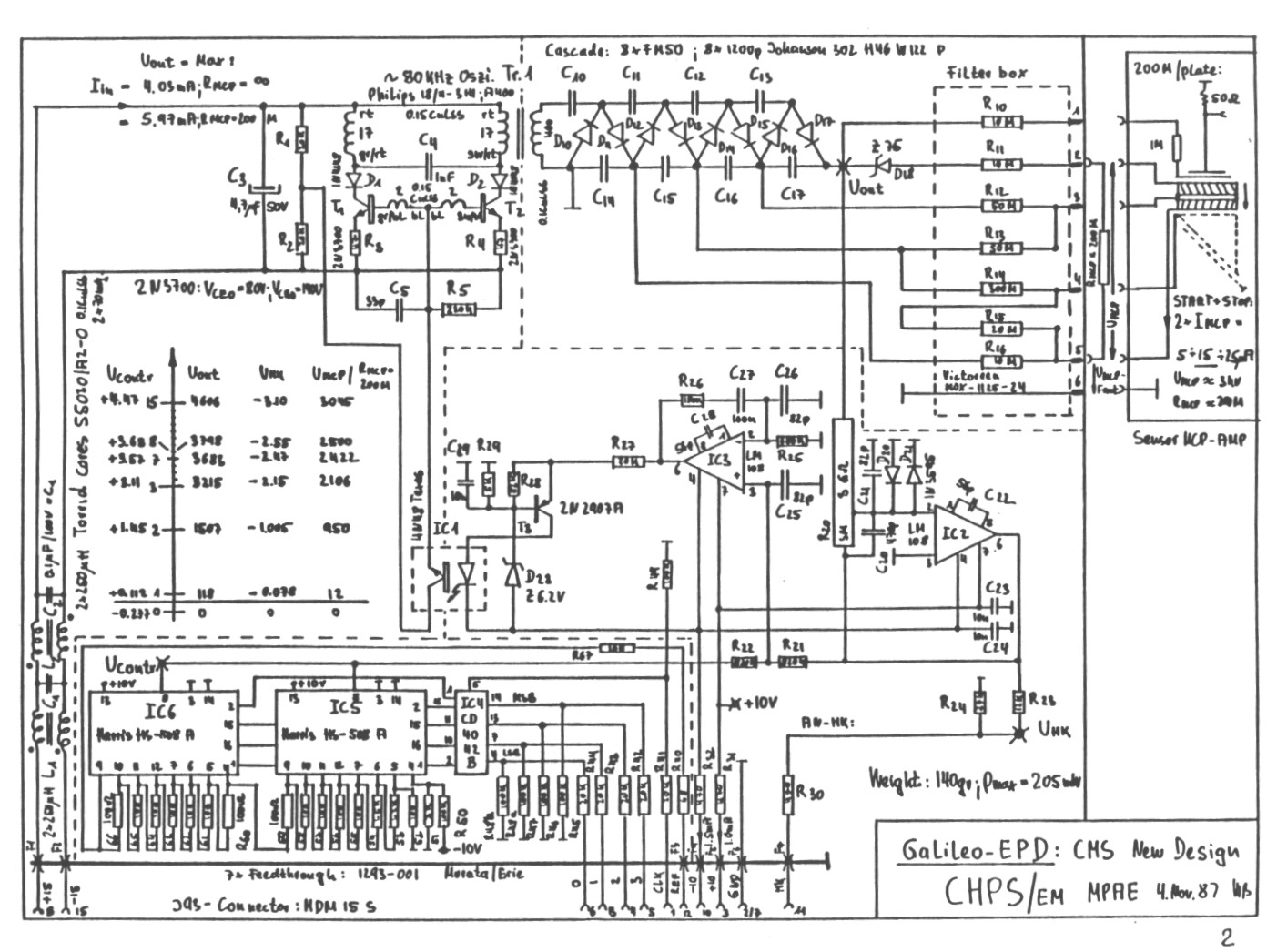

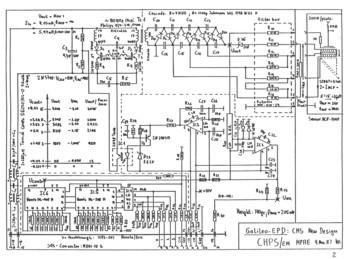

Figure 1-17. CMS, new design. Source: Critical Design Review, Dec., 1987.



Pulse Height Analyzer (PHA) - Changes to Existing Circuit Boards



Source: Critical Design Review, Dec. 1987



  • Functional Description of Changes
    1. Latch added for channel select line (J select)
    2. PHA "event active" signal definition changed
    3. Amplifier gains tailored
  • Component Packaging: Minor Changes
  • Parts Questions: None
  • Functional Testing Results: No Problems
  • Known Outstanding Design Issues: None
  • Scope: Add 1 component; add 12 lines, remove 2



EPD PHA modifications block diagram







Continue: T.A.C. Board
