GALILEO

The Galileo Energetic Particles Detector



Galileo EPD Handbook



Chapter 1. Instrument Summary



Galileo EPD Bus Commands

Source: R. C. Moore, May 30, 1979

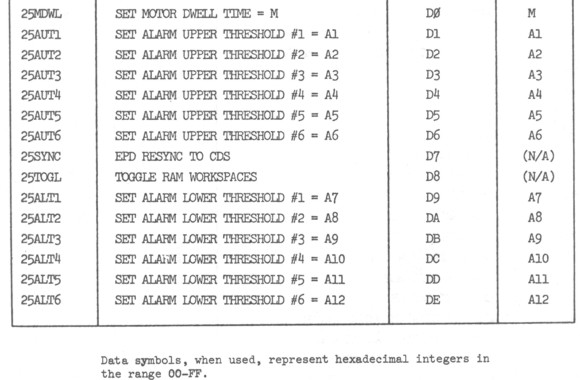

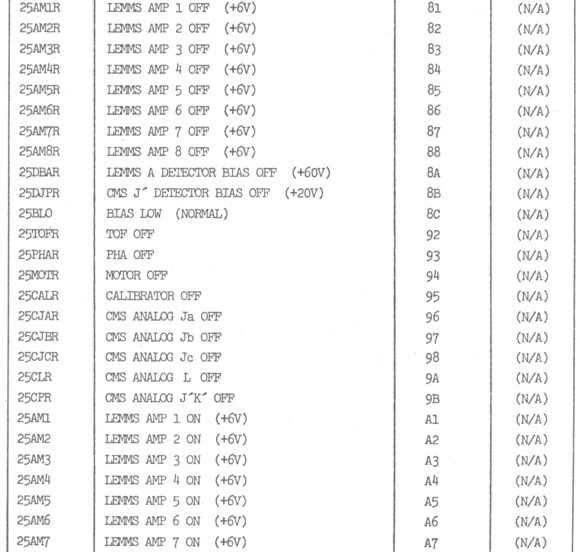

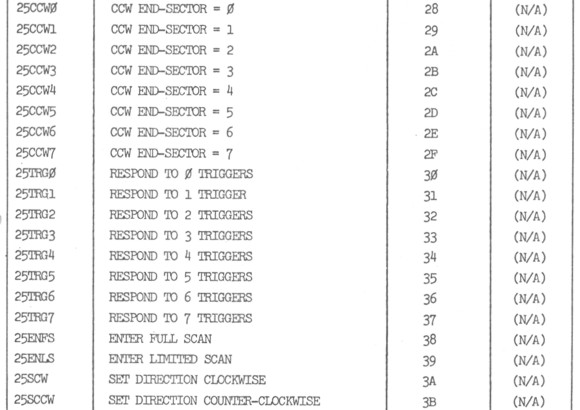

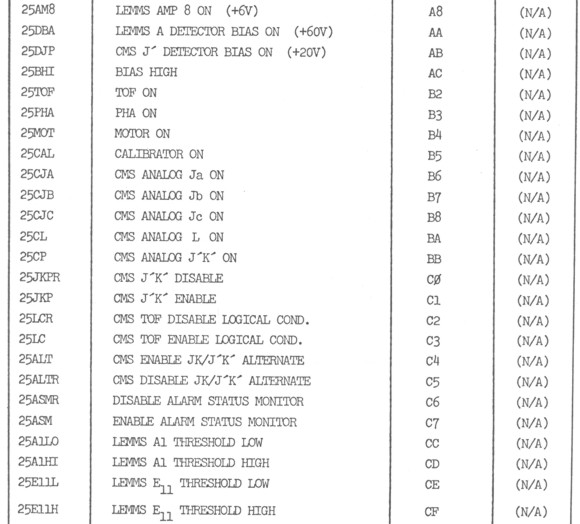

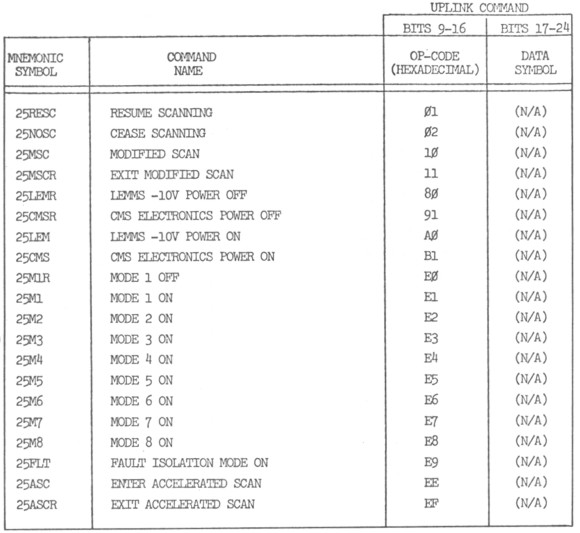

The following lists represent the latest EPD bus commands. Commands with op-codes less than 80 are destined for the motor controller; commands with op-codes greater than 7F are destined for the data system. All bus commands are one-byte commands except for some of those listed on page 7 (op-codes D0 - D6, D9 - DE). In the case of one-byte commands, bits 17-24 of the uplink command word do not have any meaning and do not need to be sent to the data system via the bus adapter.



EPD Interactive Bus Commands





EPD Non-Interactive Bus Commands











Next: Instrument Software Management Plan



Return to Galileo EPD Handbook Table of Contents Page.

Return to main Galileo Table of Contents Page.
Return to
Fundamental Technologies Home Page.




Updated 8/23/19, Cameron Crane
