The Galileo Energetic Particles Detector
Galileo EPD Handbook
Chapter 1. Instrument Summary
Galileo EPD Telemetry Format (continued)
Source: R. C. Moore, Memo to J. Dassoulas, August 3, 1978
 |

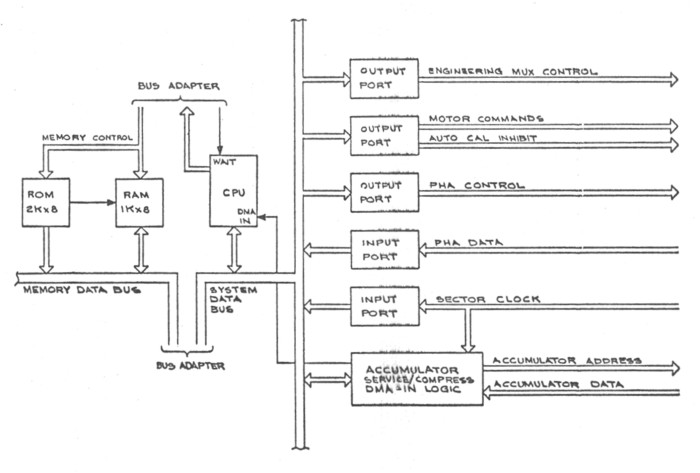

Figure 2. Galileo EPD Data System |
 |

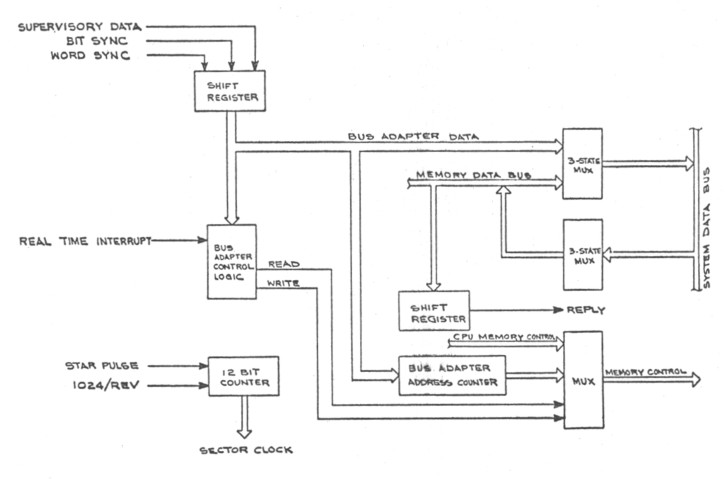

Figure 3. Galileo EPD Bus Adapter |
 |

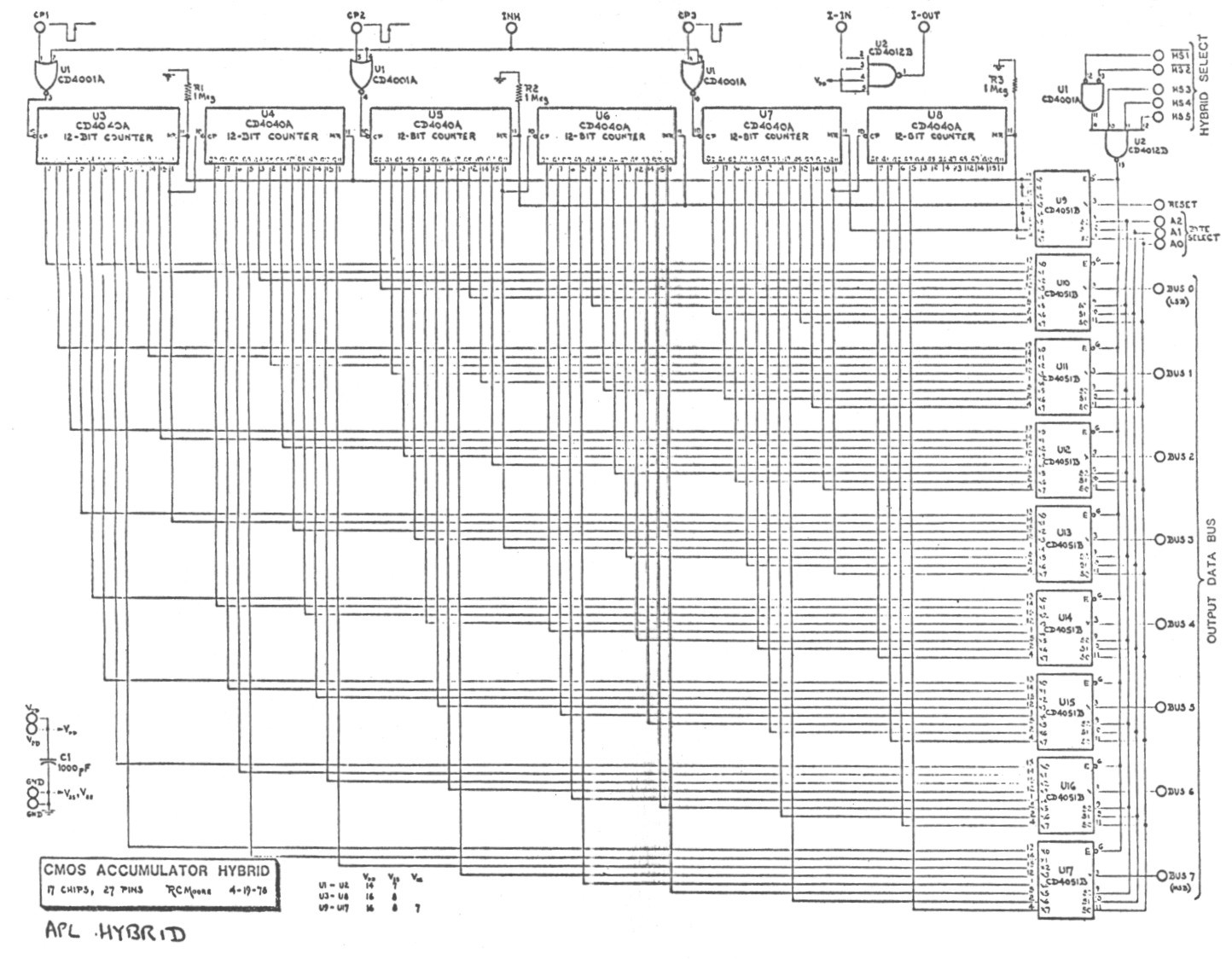

Figure 4. CMOS Accumulator Hybrid |
 |

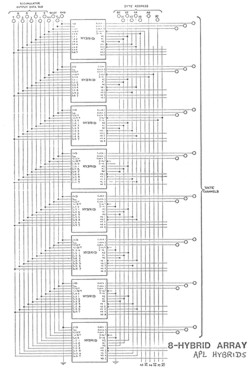

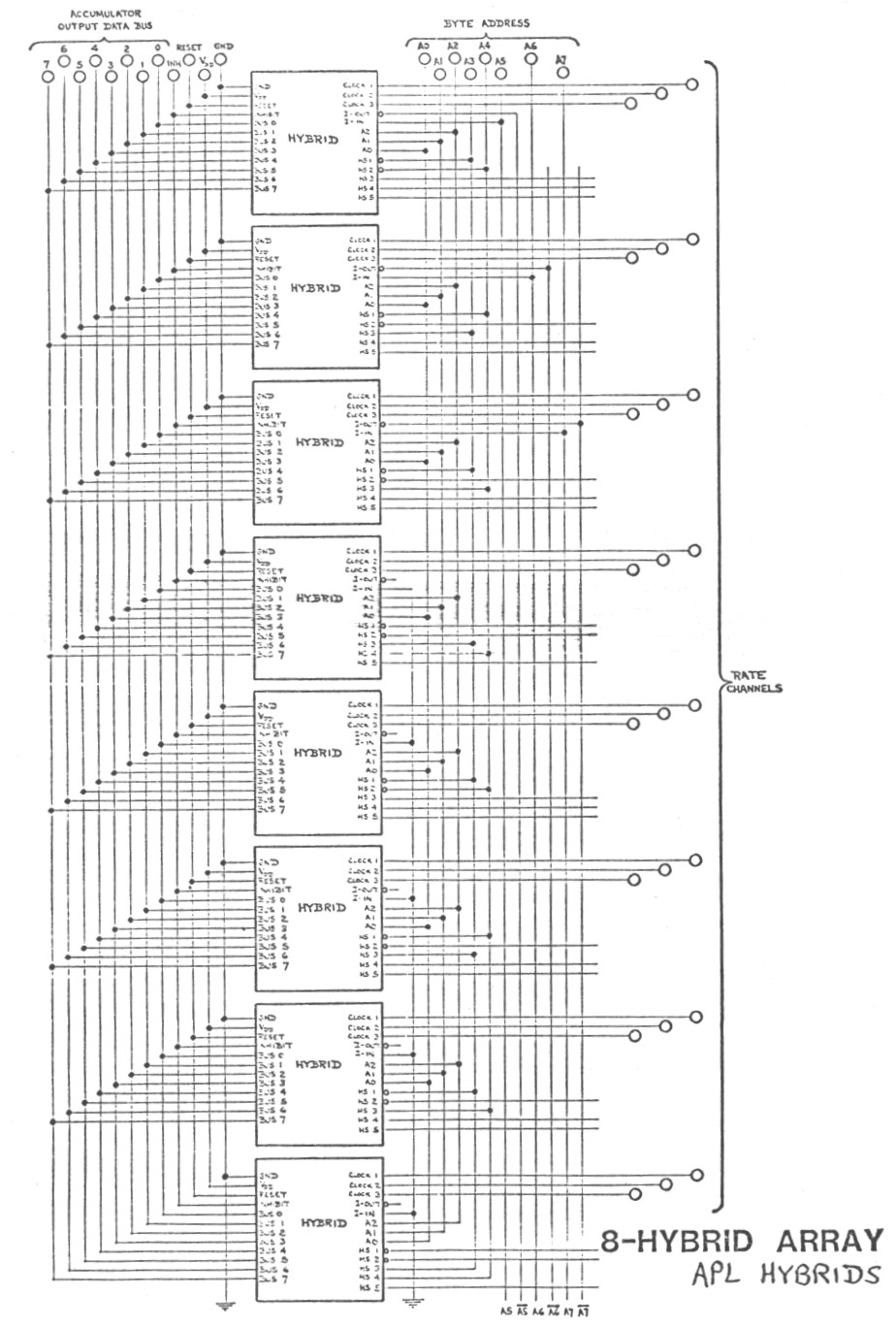

Figure 5. 8-Hybrid Array |
 |

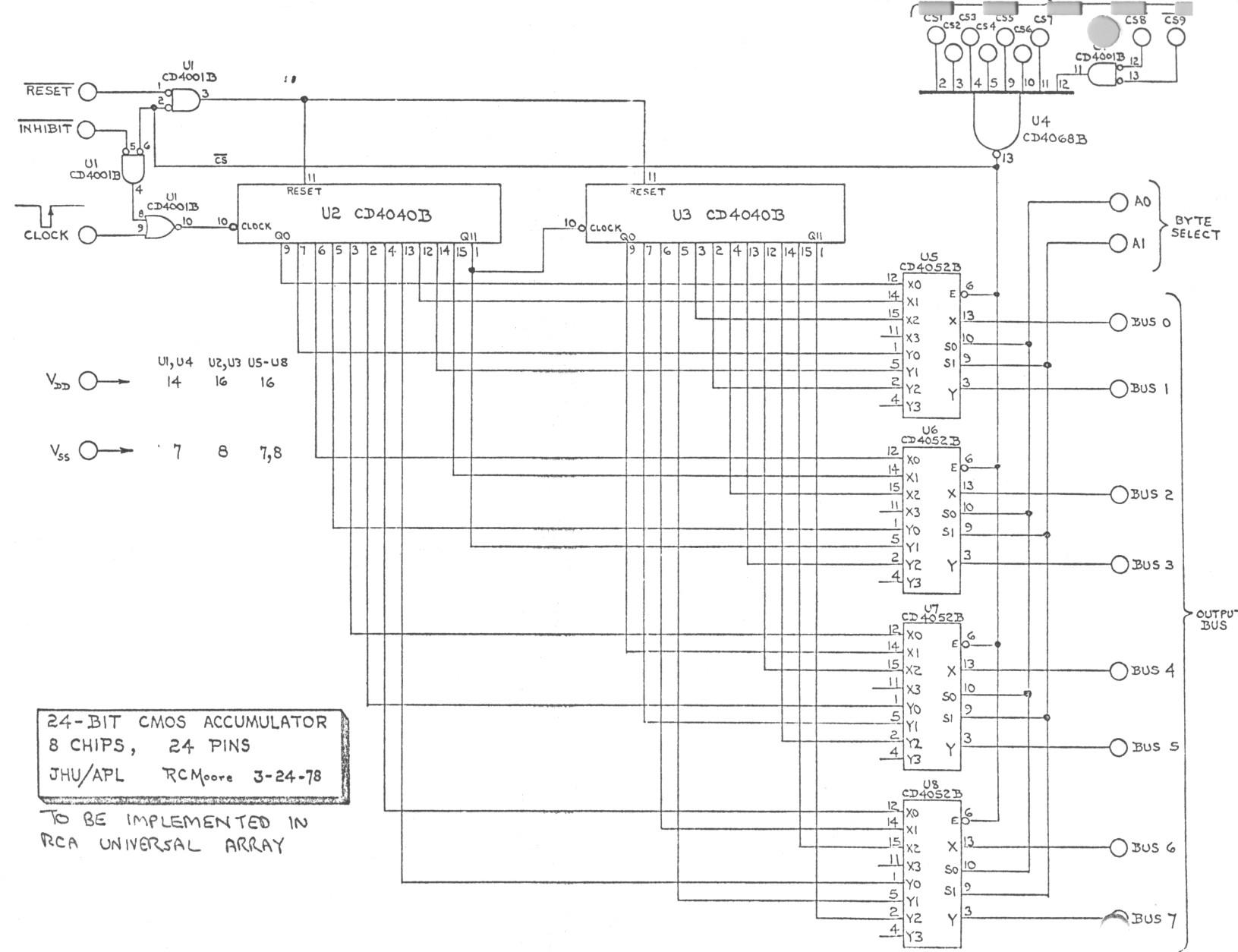

Figure 6. 24-Bit CMOS Accumulator |
 |

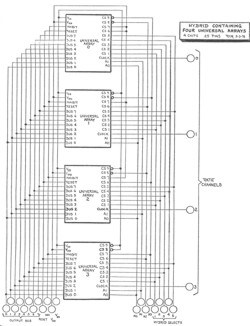

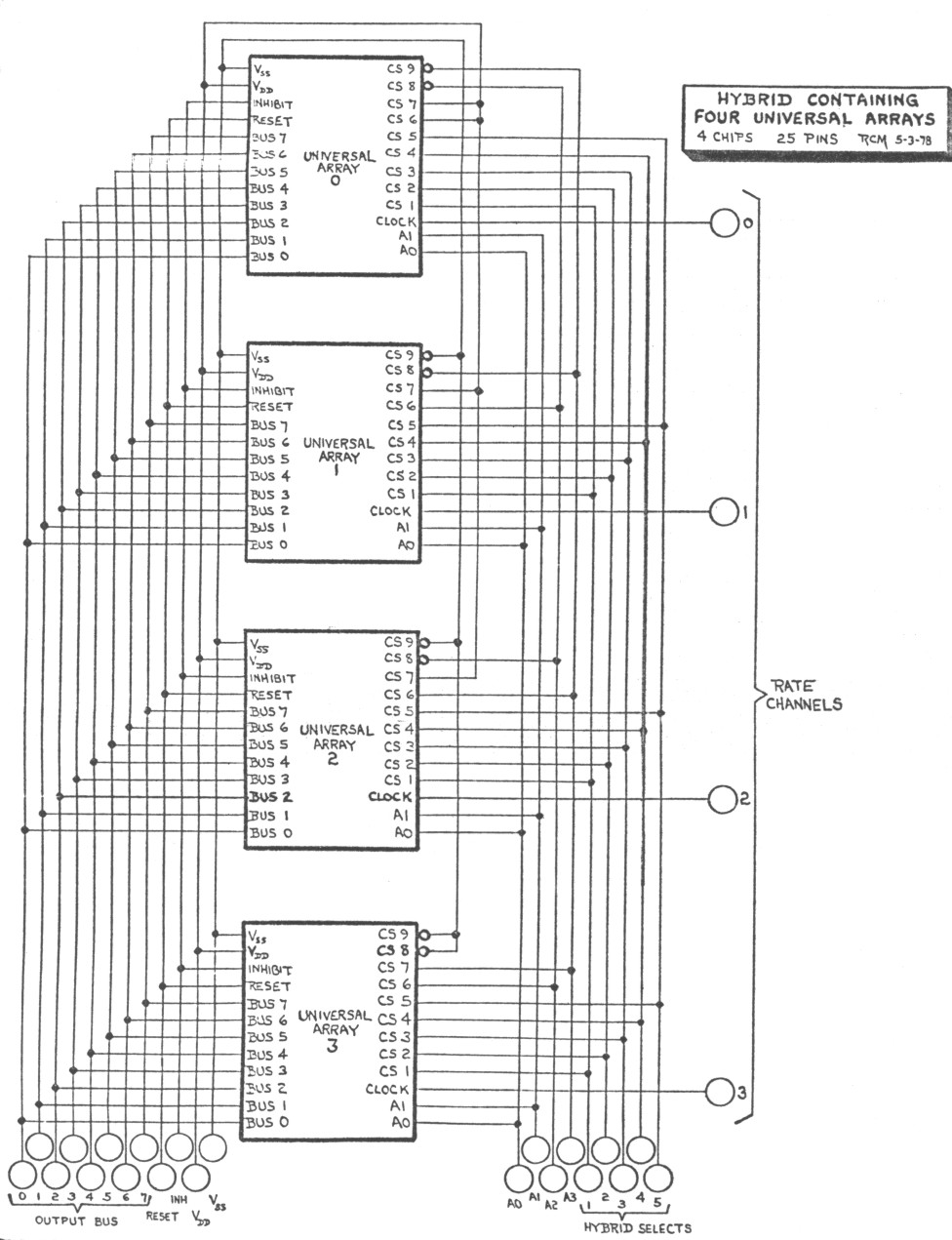

Figure 7. Hybrid Containing 4 Universal Arrays |
 |

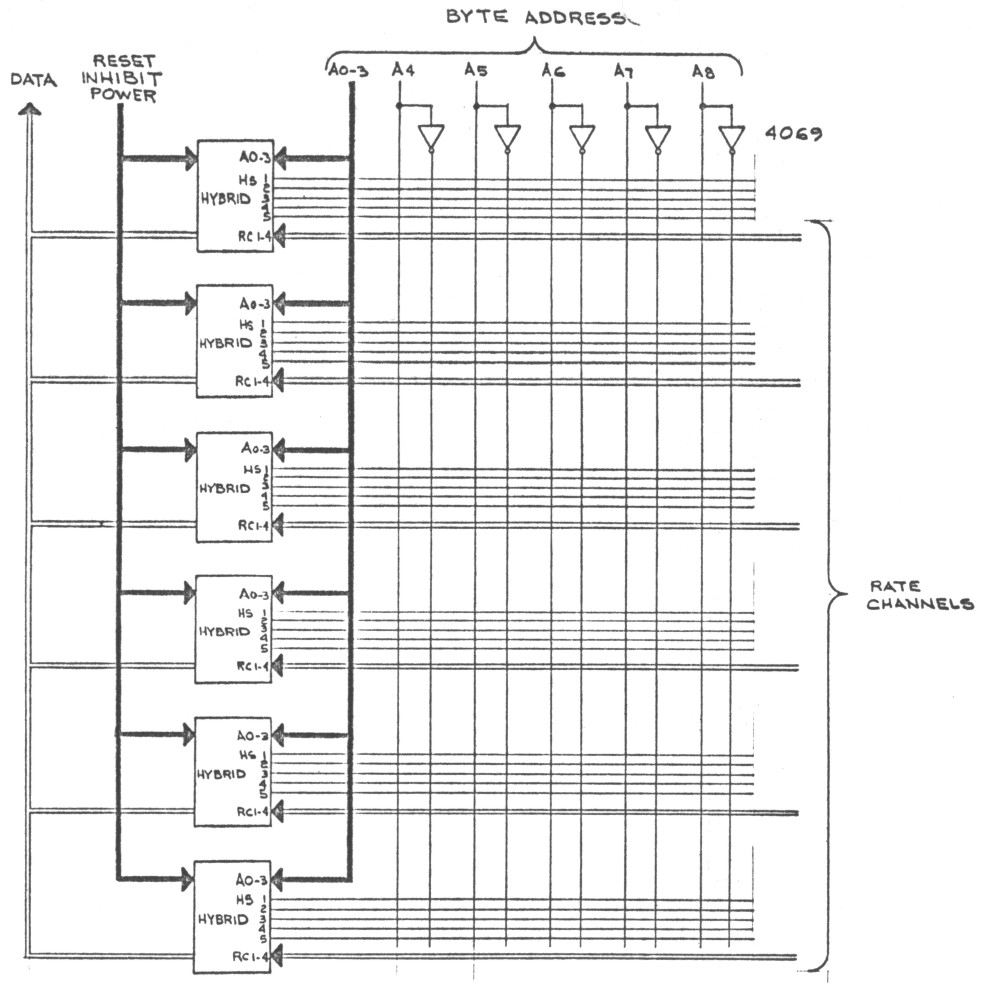

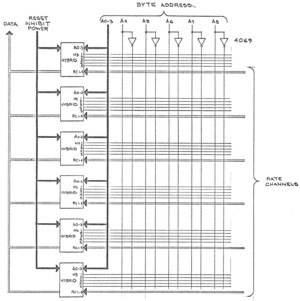

Figure 8. RCA Universal Array Hybrids |
Next: R. W. McEntire memo dated Dec. 26, 1978
